(OILITE)
ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

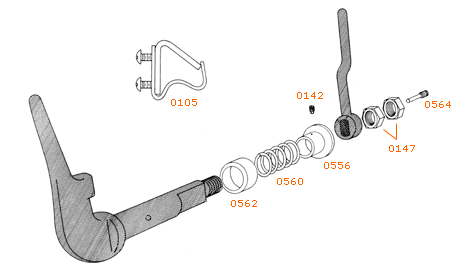

| DC KIT BB | NOTES: FOR AN 8-DOG DOOR | ||
| QTY | JDA PN | ||
|
8 EA | 0556 | FLANGED BUSHING, OILITE BRONZE, 1-1/8" I.D. |
|
8 EA | 0562 | STRAIGHT BUSHING, OILITE BRONZE, 1-1/8" I.D. |
|
8 EA | 0560 | SPRING, BRASS, 1-1/8" I.D. |
|
8 EA | 0142 | SET SCREW, DOG POINT, 12-28, BRASS |
|
16 EA | 262-9 | JAM NUT, STAINLESS STEEL, 7/8"-9 |
|
8 EA | 0564 | PACKING PLUNGER, 2-5/8" LONG |
|
8 EA | 0105 | SPRING CLIP ASSEMBLY, 1/2" CENTER-TO-CENTER HOLE SPACING, CONSISTING OF PHOSPHOR BRONZE SPRING CLIP, STEEL SPRING CLIP STOP, AND STAINLESS STEEL ROUND HEAD MACHINE SCREWS |
| DC KIT BC | NOTES: FOR A 10-DOG DOOR | ||
| QTY | JDA PN | ||
|
|
10 EA | 0556 | FLANGED BUSHING, OILITE BRONZE, 1-1/8" I.D. |
|
|
10 EA | 0562 | STRAIGHT BUSHING, OILITE BRONZE, 1-1/8" I.D. |
|
|
10 EA | 0560 | SPRING, BRASS, 1-1/8" I.D. |
|
|
10 EA | 0142 | SET SCREW, DOG POINT, 12-28, BRASS |
|
|
20 EA | 262-9 | JAM NUT, STAINLESS STEEL, 7/8"-9 |
|
|
10 EA | 0564 | PACKING PLUNGER, 2-5/8" LONG |
|
|
10 EA | 0105 | SPRING CLIP ASSEMBLY, 1/2" CENTER-TO-CENTER HOLE SPACING, CONSISTING OF PHOSPHOR BRONZE SPRING CLIP, STEEL SPRING CLIP STOP, AND STAINLESS STEEL ROUND HEAD MACHINE SCREWS |
