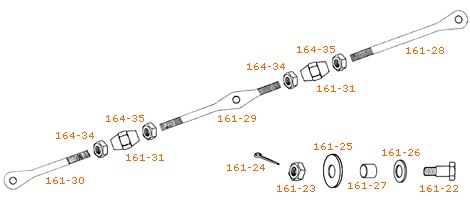

> CON ROD PARTS FOR GANG-OPERATED (QUICK-ACTING)
BALLISTIC (ARMOR) DOORS

	JDA PN	NOTES: CON RODS SHOWN HERE ARE FOR A 26" X 66" CLEAR OPENING DOOR; OTHER SIZES AVAILABLE UPON REQUEST
	161-28	TOP CON ROD
	161-29	CENTER CON ROD
	161-30	BOTTOM CON ROD
	161-31	ADJUSTING NUT
	164-34	LOCKNUT, BRASS, RIGHT HAND
	164-35	LOCKNUT, BRASS, LEFT HAND

	JDA PN	NOTES: THESE PARTS ARE USED TO CONNECT CON RODS TO DOG ASSEMBLIES
	161-22	CON ROD BOLT, ZINC PLATED STEEL, 5/8"-11 THREAD, 3/4" DIAMETER SHANK
	161-26	WASHER, BRASS, 25/32" I.D. X 1-3/8" O.D. X 1/8" THICK, FOR CON ROD BOLT
	161-27	CON ROD BUSHING, OILITE BRONZE, 3/4" I.D. X 3/4" LONG
	161-25	WASHER, BRASS, 25/32" I.D. X 2" O.D. X 1/8" THICK, FOR CON ROD BOLT
	161-23	NUT, SHALLOW, ZINC PLATED STEEL, FOR CON ROD BOLT
	161-24	COTTER PIN, STAINLESS STEEL, FOR CON ROD BOLT NUT
