ANY COMPONENT IN AN ASSEMBLY MAY ALSO BE ORDERED INDIVIDUALLY.
| JDA PN | ||
|

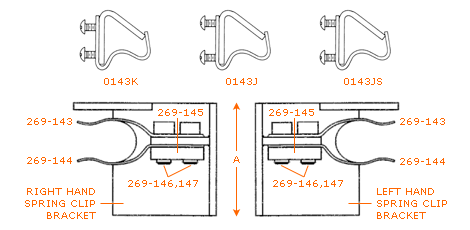

0143K | SPRING CLIP ASSEMBLY, 1/2" CENTER-TO-CENTER HOLE SPACING, CONSISTING OF PHOSPHOR BRONZE SPRING CLIP, STEEL SPRING CLIP STOP, AND STAINLESS STEEL ROUND HEAD MACHINE SCREWS |
|
0143J | SPRING CLIP ASSEMBLY, 11/16" CENTER-TO-CENTER HOLE SPACING, CONSISTING OF PHOSPHOR BRONZE SPRING CLIP, STEEL SPRING CLIP STOP, AND STAINLESS STEEL ROUND HEAD MACHINE SCREWS |
|
0143JS | SPRING CLIP ASSEMBLY, 11/16" CENTER-TO-CENTER HOLE SPACING, CONSISTING OF STAINLESS STEEL SPRING CLIP AND SPRING CLIP STOP, AND STAINLESS STEEL ROUND HEAD MACHINE SCREWS |
|
269-143 | SPRING CLIP, OUTER HALF, PHOSPHOR BRONZE |
|
269-144 | SPRING CLIP, INNER HALF, PHOSPHOR BRONZE |
|
269-145 | TAPPED PLATE, STAINLESS STEEL |
|
269-146,147 | SOCKET HEAD CAP SCREW AND LOCK WASHER |
|
269-143/147 | SPRING CLIP ASSEMBLY, CONSISTING OF SPRING CLIPS (PNS 269-143 AND 269-144), TAPPED PLATE (PN 269-145), AND CAP SCREWS AND WASHERS (PN 269-146,147) |
|
269-137 | SPRING CLIP BRACKET, STEEL, FOR RIGHT HAND DOOR, DIMENSION 'A'=2-23/64" |
|
269-138 | SPRING CLIP BRACKET, STEEL, FOR LEFT HAND DOOR, DIMENSION 'A'=2-23/64" |
|
269-141 | SPRING CLIP BRACKET, 316 STAINLESS STEEL, FOR RIGHT HAND DOOR, DIMENSION 'A'=2-23/64" |
|
269-142 | SPRING CLIP BRACKET, 316 STAINLESS STEEL, FOR LEFT HAND DOOR, DIMENSION 'A'=2-23/64" |
|
216-117 | SPRING CLIP BRACKET, ALUMINUM, FOR RIGHT HAND DOOR, DIMENSION 'A'=2-23/64" |
|
216-118 | SPRING CLIP BRACKET, ALUMINUM, FOR LEFT HAND DOOR, DIMENSION 'A'=2-23/64" |
|
269-139 | SPRING CLIP BRACKET, STEEL, FOR RIGHT HAND DOOR, DIMENSION 'A'=5" |
|
269-140 | SPRING CLIP BRACKET, STEEL, FOR LEFT HAND DOOR, DIMENSION 'A'=5" |
|
216-119 | SPRING CLIP BRACKET, ALUMINUM, FOR RIGHT HAND DOOR, DIMENSION 'A'=5" |
|
216-120 | SPRING CLIP BRACKET, ALUMINUM, FOR LEFT HAND DOOR, DIMENSION 'A'=5" |
