WATERTIGHT DOORS > DOG AND HANDLE PARTS AND ASSEMBLIES > FOR QUICK-ACTING WATERTIGHT DOORS

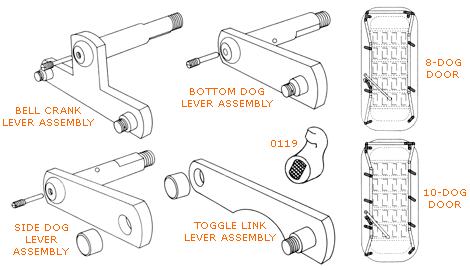

> DOGS AND DOG LEVER PARTS FOR QUICK-ACTING DOORS

ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

DC KIT GG NOTES: FOR A RIGHT HAND 8-DOG DOOR; WHEN ORDERING, SPECIFY DOOR MATERIAL (STEEL OR ALUMINUM), CLEAR OPENING SIZE, AND WHETHER SPINDLES NEED TO BE DRILLED AND TAPPED
  QTY JDA PN
0158-8 2 EA 0158-8 SIDE DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0159-8 2 EA 0159-8 SIDE DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0164 2 EA 0164 BELL CRANK LEVER ASSEMBLY, INCLUDES PACKING PLUNGER (PN 0566) AND STUDS
0156-8 1 EA 0156-8 BOTTOM DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0157-8 1 EA 0157-8 BOTTOM DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0165 1 EA 0165 TOGGLE LINK LEVER ASSEMBLY, INCLUDES OILITE BRONZE BUSHING (PN 0110) AND STUD


DC KIT GH NOTES: FOR A LEFT HAND 8-DOG DOOR; WHEN ORDERING, SPECIFY DOOR MATERIAL (STEEL OR ALUMINUM), CLEAR OPENING SIZE, AND WHETHER SPINDLES NEED TO BE DRILLED AND TAPPED
  QTY JDA PN
0158A-8 2 EA 0158A-8 SIDE DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0159A-8 2 EA 0159A-8 SIDE DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0164A 2 EA 0164A BELL CRANK LEVER ASSEMBLY, INCLUDES PACKING PLUNGER (PN 0566) AND STUDS
0156A-8 1 EA 0156A-8 BOTTOM DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0157A-8 1 EA 0157A-8 BOTTOM DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0165A 1 EA 0165A TOGGLE LINK LEVER ASSEMBLY, INCLUDES OILITE BRONZE BUSHING (PN 0110) AND STUD


DC KIT GJ NOTES: FOR A RIGHT HAND 10-DOG DOOR; WHEN ORDERING, SPECIFY DOOR MATERIAL (STEEL OR ALUMINUM), CLEAR OPENING SIZE, AND WHETHER SPINDLES NEED TO BE DRILLED AND TAPPED
  QTY JDA PN
0158-10 3 EA 0158-10 SIDE DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0159-10 3 EA 0159-10 SIDE DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0164 2 EA 0164 BELL CRANK LEVER ASSEMBLY, INCLUDES PACKING PLUNGER (PN 0566) AND STUDS
0156-10 1 EA 0156-10 BOTTOM DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0157-10 1 EA 0157-10 BOTTOM DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0165 1 EA 0165 TOGGLE LINK LEVER ASSEMBLY, INCLUDES OILITE BRONZE BUSHING (PN 0110) AND STUD


DC KIT GK NOTES: FOR A LEFT HAND 10-DOG DOOR; WHEN ORDERING, SPECIFY DOOR MATERIAL (STEEL OR ALUMINUM), CLEAR OPENING SIZE, AND WHETHER SPINDLES NEED TO BE DRILLED AND TAPPED
  QTY JDA PN
0158A-10 3 EA 0158A-10 SIDE DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0159A-10 3 EA 0159A-10 SIDE DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND OILITE BRONZE BUSHING (PN 0109)
0164A 2 EA 0164A BELL CRANK LEVER ASSEMBLY, INCLUDES PACKING PLUNGER (PN 0566) AND STUDS
0156A-10 1 EA 0156A-10 BOTTOM DOG LEVER ASSEMBLY, LEVER SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0157A-10 1 EA 0157A-10 BOTTOM DOG LEVER ASSEMBLY, HINGE SIDE, INCLUDES PACKING PLUNGER (PN 0566) AND STUD
0165A 1 EA 0165A TOGGLE LINK LEVER ASSEMBLY, INCLUDES OILITE BRONZE BUSHING (PN 0110) AND STUD


  JDA PN
0119 0119 ROTATING DOG, STAINLESS STEEL, FOR QUICK-ACTING DOOR
