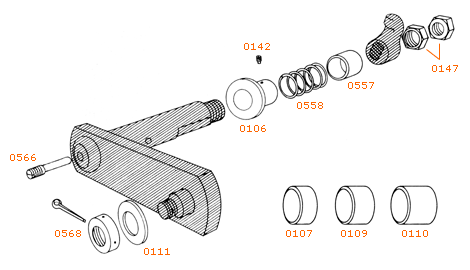

WATERTIGHT DOORS > DOG AND HANDLE PARTS AND ASSEMBLIES > FOR QUICK-ACTING WATERTIGHT DOORS
> DOGGING WEAR PARTS FOR STEEL QUICK-ACTING DOORS
(OILITE)


ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

DC KIT FF NOTES: FOR AN 8-DOG DOOR; INCLUDES CON ROD WEAR PARTS
  QTY JDA PN
0106 10 EA 0106 FLANGED BUSHING, OILITE BRONZE, 1" I.D.
0557 8 EA 0557 STRAIGHT BUSHING, OILITE BRONZE, 1" I.D.
0558 8 EA 0558 SPRING, BRASS, 1" I.D.
0142 8 EA 0142 SET SCREW, DOG POINT, 12-28, BRASS
0147 18 EA 0147 JAM NUT, STAINLESS STEEL, 7/8"-9
0566 8 EA 0566 PACKING PLUNGER, 1-1/2" LONG
0568 16 EA 0568 CON ROD COLLAR, BRASS, AND COTTER PIN, STAINLESS STEEL
0111 16 EA 0111 CON ROD WASHER, BRASS
0107 10 EA 0107 CON ROD BUSHING, OILITE BRONZE, 3/8" LONG
0109 4 EA 0109 SIDE DOG LEVER BUSHING, OILITE BRONZE, 1/2" LONG
0110 2 EA 0110 TOGGLE LINK LEVER BUSHING, OILITE BRONZE, 5/8" LONG


DC KIT FF-10 NOTES: FOR A 10-DOG DOOR; INCLUDES CON ROD WEAR PARTS
  QTY JDA PN
0106 12 EA 0106 FLANGED BUSHING, OILITE BRONZE, 1" I.D.
0557 10 EA 0557 STRAIGHT BUSHING, OILITE BRONZE, 1" I.D.
0558 10 EA 0558 SPRING, BRASS, 1" I.D.
0142 10 EA 0142 SET SCREW, DOG POINT, 12-28, BRASS
0147 22 EA 0147 JAM NUT, STAINLESS STEEL, 7/8"-9
0566 10 EA 0566 PACKING PLUNGER, 1-1/2" LONG
0568 18 EA 0568 CON ROD COLLAR, BRASS, AND COTTER PIN, STAINLESS STEEL
0111 18 EA 0111 CON ROD WASHER, BRASS
0107 12 EA 0107 CON ROD BUSHING, OILITE BRONZE, 3/8" LONG
0109 6 EA 0109 SIDE DOG LEVER BUSHING, OILITE BRONZE, 1/2" LONG
0110 2 EA 0110 TOGGLE LINK LEVER BUSHING, OILITE BRONZE, 5/8" LONG


DC KIT 0106PR NOTES: SET OF 2 BUSHINGS, FOR STEEL DOOR HAND LEVER SHAFT
  QTY JDA PN
0106 2 EA 0106 FLANGED BUSHING, OILITE BRONZE, 1" I.D.
