> HANDLE PARTS AND ASSEMBLIES FOR QUICK-ACTING DOORS

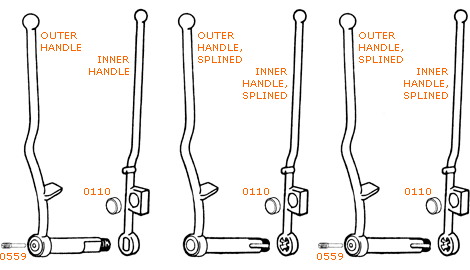

HANDLES PICTURED ABOVE ARE FOR A RIGHT HAND DOOR.
ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

DC KIT D1			NOTES: FOR A LEFT HAND DOOR; FOR 26" WIDE CLEAR OPENING DOORS AND THE LEVER SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1LH	INNER HANDLE, STAINLESS STEEL
	1 EA	0587-2LH	OUTER HANDLE, STAINLESS STEEL, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG

DC KIT D2			NOTES: FOR A RIGHT HAND DOOR; FOR 26" WIDE CLEAR OPENING DOORS AND THE LEVER SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1RH	INNER HANDLE, STAINLESS STEEL
	1 EA	0587-2RH	OUTER HANDLE, STAINLESS STEEL, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG

DC KIT D3			NOTES: FOR A LEFT HAND DOOR; FOR 26" WIDE CLEAR OPENING DOORS AND THE LEVER SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1LH-269	INNER HANDLE, SPLINED, STAINLESS STEEL
	1 EA	0587-2LH-269	OUTER HANDLE, SPLINED, STAINLESS STEEL
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG

DC KIT D4			NOTES: FOR A RIGHT HAND DOOR; FOR 26" WIDE CLEAR OPENING DOORS AND THE LEVER SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1RH-269	INNER HANDLE, SPLINED, STAINLESS STEEL
	1 EA	0587-2RH-269	OUTER HANDLE, SPLINED, STAINLESS STEEL
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG

DC KIT D5			NOTES: FOR A LEFT HAND DOOR; FOR 26" WIDE CLEAR OPENING DOORS AND THE LEVER SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1LH-269	INNER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0587-2LH-269M	OUTER HANDLE, STAINLESS STEEL, SPLINED, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG

DC KIT D6			NOTES: FOR A RIGHT HAND DOOR; FOR 26" WIDE CLEAR OPENING DOORS AND THE LEVER SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1RH-269	INNER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0587-2RH-269M	OUTER HANDLE, STAINLESS STEEL, SPLINED, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG

DC KIT D7			NOTES: FOR A LEFT HAND DOOR; FOR THE HINGE SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1RH	INNER HANDLE, STAINLESS STEEL
	1 EA	0587-2RH-36HS	OUTER HANDLE, STAINLESS STEEL, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG

DC KIT D8			NOTES: FOR A RIGHT HAND DOOR; FOR THE HINGE SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1LH	INNER HANDLE, STAINLESS STEEL
	1 EA	0587-2LH-36HS	OUTER HANDLE, STAINLESS STEEL, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG

DC KIT D9			NOTES: FOR A LEFT HAND DOOR; FOR THE HINGE SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1RH-269	INNER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0587-2RH-269-36HS	OUTER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG

DC KIT D10			NOTES: FOR A RIGHT HAND DOOR; FOR THE HINGE SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1LH-269	INNER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0587-2LH-269-36HS	OUTER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG

DC KIT D11			NOTES: FOR A LEFT HAND DOOR; FOR THE HINGE SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1RH-269	INNER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0587-2RH-269M-36HS	OUTER HANDLE, STAINLESS STEEL, SPLINED, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG

DC KIT D12			NOTES: FOR A RIGHT HAND DOOR; FOR THE HINGE SIDE OF 36" WIDE DOORS
	QTY	JDA PN
	1 EA	0587-1LH-269	INNER HANDLE, STAINLESS STEEL, SPLINED
	1 EA	0587-2LH-269M-36HS	OUTER HANDLE, STAINLESS STEEL, SPLINED, DRILLED FOR PACKING PLUNGER
	1 EA	0110	BUSHING, OILITE BRONZE, 5/8" LONG
	1 EA	0559	PACKING PLUNGER, 2-1/4" LONG
