ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

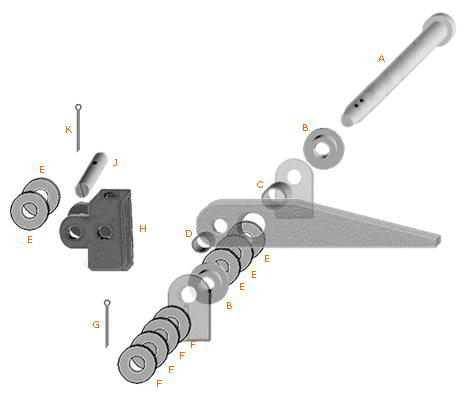

| DC KIT MA-538A | NOTE: FOR LOW HINGE-TYPE WATERTIGHT DOOR; 1 KIT SERVICES 1 HINGE ASSEMBLY; 2 KITS NEEDED PER DOOR | ||
| KEY | QTY | JDA PN | |
| A | 1 EA | 216-5 | HINGE PIN, STAINLESS STEEL |
| B | 2 EA | 216-12 | HINGE PAD BUSHING |
| C | 1 EA | 216-8 | HINGE PIN SPACER |
| D | 1 EA | 216-7 | YOKE PIN SPACER, 0.6265"/0.6260" OD |
| D | 1 EA | 216-18 | YOKE PIN SPACER (BLUE), 0.6295"/0.6290" OD |
| D | 1 EA | 216-19 | YOKE PIN SPACER (ORANGE), 0.6325"/0.6320" OD |
| D | 1 EA | 216-20 | YOKE PIN SPACER (SILVER), 0.6355"/0.6350" OD |
| D | 1 EA | 216-21 | YOKE PIN SPACER (YELLOW), 0.6385"/0.6380" OD |
| E | 6 EA | 216-14 | THRUST WASHER (INCLUDES 1 SPARE) |
| F | 4 EA | 216-11 | WASHER |
| G | 1 EA | 216-10 | COTTER PIN, FOR HINGE PIN |
| H | 1 EA | 216-1 | YOKE ASSEMBLY, FOR LOW TYPE HINGE (INCLUDES 4 YOKE BUSHINGS INSTALLED IN YOKE) |
| J | 1 EA | 216-6 | YOKE PIN, STAINLESS STEEL |
| K | 1 EA | 216-9 | COTTER PIN, FOR YOKE PIN |
ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

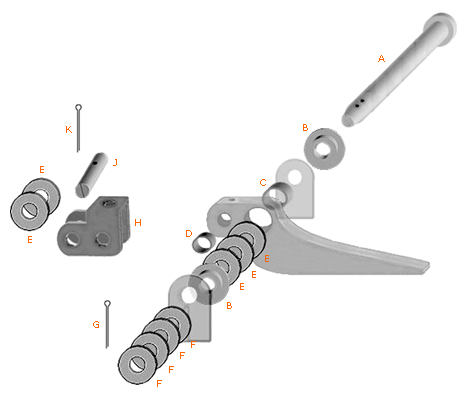

| DC KIT MA-538C | NOTE: FOR HIGH HINGE-TYPE WATERTIGHT DOOR; 1 KIT SERVICES 1 HINGE ASSEMBLY; 2 KITS NEEDED PER DOOR | ||
| KEY | QTY | JDA PN | |
| A | 1 EA | 216-5 | HINGE PIN, STAINLESS STEEL |
| B | 2 EA | 216-12 | HINGE PAD BUSHING |
| C | 1 EA | 216-8 | HINGE PIN SPACER |
| D | 1 EA | 216-7 | YOKE PIN SPACER, 0.6265"/0.6260" OD |
| D | 1 EA | 216-18 | YOKE PIN SPACER (BLUE), 0.6295"/0.6290" OD |
| D | 1 EA | 216-19 | YOKE PIN SPACER (ORANGE), 0.6325"/0.6320" OD |
| D | 1 EA | 216-20 | YOKE PIN SPACER (SILVER), 0.6355"/0.6350" OD |
| D | 1 EA | 216-21 | YOKE PIN SPACER (YELLOW), 0.6385"/0.6380" OD |
| E | 6 EA | 216-14 | THRUST WASHER (INCLUDES 1 SPARE) |
| F | 4 EA | 216-11 | WASHER |
| G | 1 EA | 216-10 | COTTER PIN, FOR HINGE PIN |
| H | 1 EA | 216-2 | YOKE ASSEMBLY, FOR HIGH TYPE HINGE (INCLUDES 4 YOKE BUSHINGS INSTALLED IN YOKE) |
| J | 1 EA | 216-6 | YOKE PIN, STAINLESS STEEL |
| K | 1 EA | 216-9 | COTTER PIN, FOR YOKE PIN |
