ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

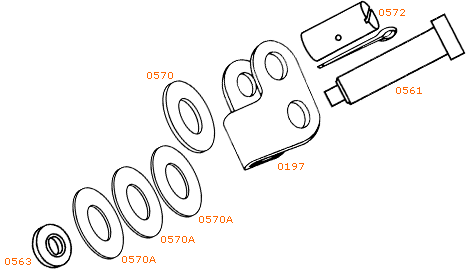

| DC KIT J | |||
| QTY | JDA PN | ||
|
4 EA | 0197 | HINGE YOKE, STEEL |
|
4 EA | 0561 | HINGE PIN, BRASS |
|
4 EA | 0563 | HINGE PIN COLLAR, BRASS |
|
8 EA | 0570 | WASHER, BRASS, 1/8" THICK |
|
12 EA | 0570A | WASHER, BRASS, 1/16" THICK |
|
4 EA | 0572 | YOKE PIN, BRASS, AND COTTER PIN, STAINLESS STEEL |
ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

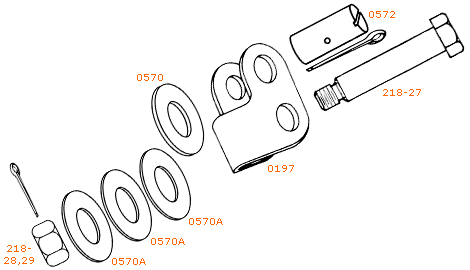

| DC KIT J2 | |||
| QTY | JDA PN | ||
|
|
4 EA | 0197 | HINGE YOKE, STEEL |
|
4 EA | 218-27 | HINGE BOLT, BRASS |
|
4 EA | 218-28,29 | NUT, BRASS, AND COTTER PIN, STAINLESS STEEL |
|
|
8 EA | 0570 | WASHER, BRASS, 1/8" THICK |
|
|
12 EA | 0570A | WASHER, BRASS, 1/16" THICK |
|
|
4 EA | 0572 | YOKE PIN, BRASS, AND COTTER PIN, STAINLESS STEEL |
