ANY COMPONENT IN AN ASSEMBLY MAY ALSO BE ORDERED INDIVIDUALLY.
CLICK HERE TO GO TO PILOTHOUSE WINDOW GASKETS.
| JDA PN | ||
|

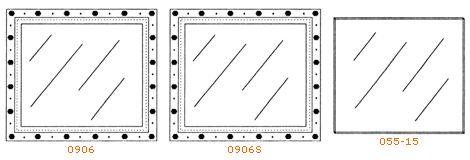

0906 | PILOTHOUSE WINDOW ASSEMBLY, 14" X 16" CLEAR OPENING, CONSISTING OF STEEL FRAMES (PNS 055-10, 055-11 AND 055-12), TEMPERED GLASS (PN 055-15), RUBBER GASKETS (PNS 1050-4 AND 055-14), STAINLESS STEEL SCREWS (PN 055-25), STAINLESS STEEL STUDS (PN 055-21) AND STAINLESS STEEL NUTS (PN 055-23) |
|
0906S | PILOTHOUSE WINDOW ASSEMBLY, 14" X 16" CLEAR OPENING, CONSISTING OF STAINLESS STEEL FRAMES (PNS 055-18, 055-19 AND 055-20), TEMPERED GLASS (PN 055-15), RUBBER GASKETS (PNS 1050-4 AND 055-14), STAINLESS STEEL SCREWS (PN 055-25), STAINLESS STEEL STUDS (PN 055-21) AND STAINLESS STEEL NUTS (PN 055-23) |
|
055-15 | TEMPERED GLASS LENS, 13" X 15" X 1/2" THICK, FOR PILOTHOUSE WINDOW ASSEMBLY |
