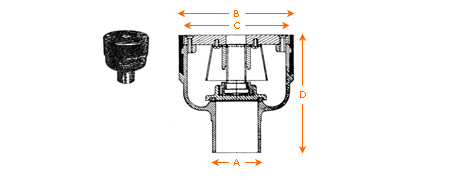

| PIPE SIZE | JDA PN | DIA. 'A' | DIA. 'B' | DIA. 'C' | DIM. 'D' |
| 1-1/2" | B789C15 | 1.905" | 5" | 4-19/32" | 5-9/16" |
| 2" | B789C20 | 2.380" | 5-9/16" | 5-5/32" | 5-29/32" |
| 2-1/2" | B789C25 | 2.882" | 6-5/8" | 6-5/32" | 6-3/16" |
| 3" | B789C30 | 3.507" | 7-5/8" | 7-3/32" | 6-5/8" |
