CLICK HERE TO GO TO REPAIR KITS FOR TYPE D DECK DRAINS.

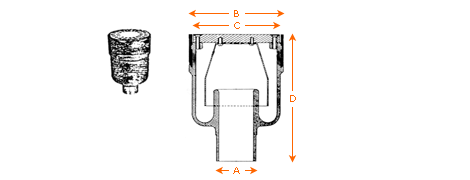

PIPE SIZE | JDA PN | DIA. 'A' | DIA. 'B' | DIA. 'C' | DIM. 'D' |
1-1/2" | D789C15 | 1.905" | 5" | 4-19/32" | 8-5/16" |
2" | D789C20 | 2.380" | 5-9/16" | 5-5/32" | 8-21/32" |
2-1/2" | D789C25 | 2.882" | 6-5/8" | 6-5/32" | 8-15/16" |
3" | D789C30 | 3.507" | 7-5/8" | 7-3/32" | 9-3/8" |
