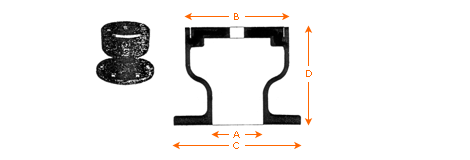

| PIPE SIZE | JDA PN | DIA. 'A' | DIA. 'B' | DIA. 'C' | DIM. 'D' |
| 1-1/2" | F789A15 | 1-1/2" | 4" | 5-1/16" | 4-9/32" |
| 2" | F789A20 | 2" | 4-1/2" | 5-9/16" | 4-11/32" |
| 2-1/2" | F789A25 | 2-1/2" | 5-1/16" | 6-1/8" | 4-5/8" |
| 3" | F789A30 | 3" | 6-5/8" | 6-5/8" | 5-5/16" |
