CLICK HERE TO GO TO REPAIR KITS FOR TYPE H DECK DRAINS.

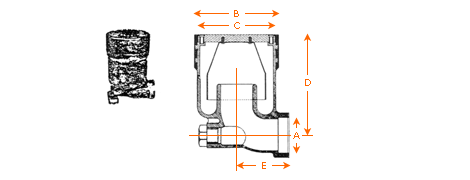

| PIPE SIZE | JDA PN | DIA. 'A' | DIA. 'B' | DIA. 'C' | DIM. 'D' | DIM. 'E' |
| 1-1/2" | H789B15 | 1.905" | 5-1/8" | 4-19/32" | 7" | 3-3/16" |
| 2" | H789B20 | 2.380" | 5-11/16" | 5-5/32" | 7-9/16" | 3-9/16" |
| 2-1/2" | H789B25 | 2.882" | 6-3/4" | 6-5/32" | 8-1/16" | 4-1/8" |
| 3" | H789B30 | 3.507" | 7-3/4" | 7-3/32" | 8-25/32" | 4-13/16" |
