DECK DRAINS > COMPLETE DECK DRAINS > TYPE H DECK DRAINS
> COMPLETE COPPER-NICKEL (70-30 CU-NI) TYPE H DECK DRAINS

CLICK HERE TO GO TO REPAIR KITS FOR TYPE H DECK DRAINS.

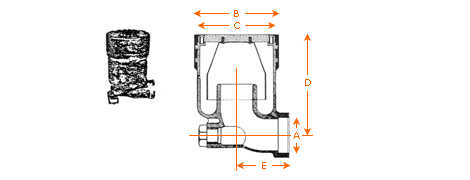

PIPE SIZE JDA PN DIA. 'A' DIA. 'B' DIA. 'C' DIM. 'D' DIM. 'E'
1-1/2" H789C15 1.905" 5" 4-19/32" 7" 3-3/16"
2" H789C20 2.380" 5-9/16" 5-5/32" 7-9/16" 3-9/16"
2-1/2" H789C25 2.882" 6-5/8" 6-5/32" 8-1/16" 4-1/8"
3" H789C30 3.507" 7-5/8" 7-3/32" 8-25/32" 4-13/16"
