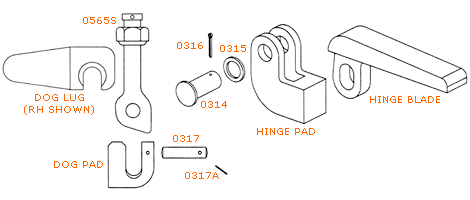

> DOG AND HINGE PARTS FOR INDIVIDUALLY-DOGGED RAISED HATCHES

ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

DC KIT IM			NOTES: FOR AN ALUMINUM OR STEEL HATCH
	QTY	JDA PN
	6 EA	0565S	DOG BOLT ASSEMBLY, CONSISTING OF 304 STAINLESS STEEL DOG BOLT AND BRASS NUT, COLLAR AND PIN
	2 EA	0314	HINGE PIN, BRASS
	2 EA	0315	HINGE PIN WASHER, BRASS
	2 EA	0316	COTTER PIN, STAINLESS STEEL
	6 EA	0317	DOG PAD PIN, STAINLESS STEEL
	6 EA	0317A	RETAINING PIN, BRASS, FOR DOG PAD PIN

	JDA PN
	0318	DOG PAD, STEEL
	0318A	DOG PAD, ALUMINUM
	0321	DOG LUG, STEEL, RIGHT HAND
	0321A	DOG LUG, STEEL, LEFT HAND
	0321AR	DOG LUG, ALUMINUM, RIGHT HAND
	0321AL	DOG LUG, ALUMINUM, LEFT HAND
	0319	HINGE PAD, STEEL
	0319A	HINGE PAD, ALUMINUM
	0320	HINGE BLADE, STEEL
	0320A	HINGE BLADE, ALUMINUM
