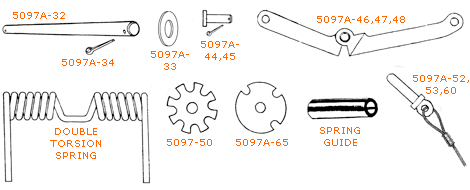

> HINGE PARTS FOR QUICK-ACTING RAISED SPRING BALANCED HATCHES

	JDA PN
	5097A-32	HINGE PIN, BRASS, 5/8" DIA. X 13-13/16 LONG
	5097A-33	HINGE PIN WASHER, BRASS, 1/8" THICK
	5097A-34	COTTER PIN, STAINLESS STEEL, FOR HINGE PIN
	5097A-44,45	BRACE PIN, BRASS, WITH COTTER PIN, STAINLESS STEEL, FOR BRACE LINK ASSEMBLY
	5097A-46,47,48	BRACE LINK ASSEMBLY
	5097-54	DOUBLE TORSION SPRING, .4375" WIRE DIA., 1-3/16" I.D. X 10-3/8" MAX LENGTH, FOR USE WITH 8-NOTCH SPRING KEY 5097-50
	5097-50	SPRING KEY, 8-NOTCH, STAINLESS STEEL, 3" DIA., FOR USE WITH SPRING 5097-54
	5097-56	SPRING GUIDE, 1-1/16" O.D. X 4-5/8" LONG, SLIPS INTO SPRING 5097-54 (2 REQUIRED PER SPRING)
	5097A-67	DOUBLE TORSION SPRING, .375" WIRE DIA., 1-7/16" I.D. X 10-3/8" MAX LENGTH, FOR USE WITH 3-NOTCH SPRING KEY 5097A-65
	5097A-65	SPRING KEY, 3-NOTCH, STAINLESS STEEL, 3-1/4" DIA., FOR USE WITH SPRING 5097A-67
	5097A-66	SPRING GUIDE, 1-5/16 O.D. X 4-5/8" LONG, SLIPS INTO SPRING 5097A-67 (2 REQUIRED PER SPRING)
	5097A-52,53,60	EYE BOLT, 3/8" X 1-3/8" LONG, WITH WIRE ROPE AND COMPRESSION SLEEVES
