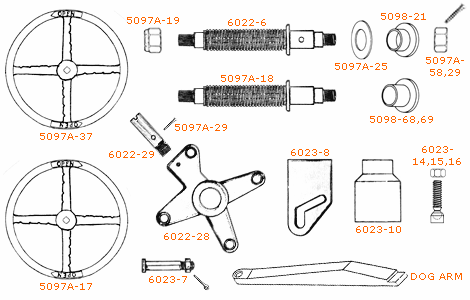

> OPERATING MECHANISM AND DOG PARTS FOR QUICK-ACTING RAISED SPRING BALANCED HATCHES

	JDA PN
	5097A-37	UPPER HANDWHEEL, BRASS, 10" DIA. X 1" DEEP, OPENS COUNTERCLOCKWISE
	5097A-17	LOWER HANDWHEEL, BRASS, 10" DIA. X 2-1/2" DEEP, OPENS CLOCKWISE
	6022-6	SPINDLE, WITH STICK PACKING PASSAGES
	5097A-18	SPINDLE, WITHOUT STICK PACKING PASSAGES
	5097A-19	SELF-LOCKING NUT, HEAVY THIN, STAINLESS STEEL, 3/4", FOR BOTTOM END OF SPINDLE
	5097A-58,29	HEX NUT, STAINLESS STEEL, 3/4"-10, WITH SPRING PIN, STAINLESS STEEL, FOR TOP END OF SPINDLE
	5098-21	FLANGED BUSHING, OILITE BRONZE, FOR USE WITH SPINDLE 6022-6
	5098-68,69	FLANGED BUSHING, SELF-LUBRICATING, STAINLESS STEEL, FOR USE WITH SPINDLE 5097A-18
	5097A-25	THRUST WASHER, NAVAL BRASS, FOR SPINDLE
	6022-28	SPIDER
	6022-29	SPIDER PIN
	5097A-29	SPRING PIN, STAINLESS STEEL, FOR SPIDER PIN
	5098-8	DOG ARM, 15-3/4" LONG FROM CENTER OF HOLE TO CENTER OF DOG ARM
	5098-71	DOG ARM, 15-3/8" LONG FROM CENTER OF HOLE TO CENTER OF DOG ARM
	5098-72	DOG ARM, 13-7/8" LONG FROM CENTER OF HOLE TO CENTER OF DOG ARM
	6023-7	DOG ARM BOLT, HEX NUT AND COTTER PIN, STAINLESS STEEL
	6023-8	CAM
	6023-10	SPINDLE HOUSING
	6023-14,15,16	DOG ADJUSTING SCREW, SHOE AND NUT
