SCUTTLES > OPERATING MECHANISM, DOG AND HINGE PARTS > FOR QUICK-ACTING RAISED SCUTTLES
> MISCELLANEOUS OPERATING MECHANISM AND DOG PARTS FOR
QUICK-ACTING RAISED SCUTTLES



  JDA PN

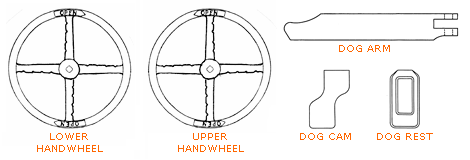

0569 0569 LOWER HANDWHEEL, BRASS, 10" DIA., FOR AN 18" OR 21" SCUTTLE, OPENS CLOCKWISE
0186 0186 LOWER HANDWHEEL, BRASS, 13" DIA., FOR A 25" SCUTTLE, OPENS CLOCKWISE
0569A 0569A UPPER HANDWHEEL, BRASS, 10" DIA., FOR AN 18" OR 21" SCUTTLE, OPENS COUNTERCLOCKWISE
0186A 0186A UPPER HANDWHEEL, BRASS, 13" DIA., FOR A 25" SCUTTLE, OPENS COUNTERCLOCKWISE
0190 0190 DOG ARM, STEEL, 8-7/8" LONG, FOR AN 18" SCUTTLE
0190S 0190S DOG ARM, STAINLESS STEEL, 8-7/8" LONG, FOR AN 18" SCUTTLE
0191 0191 DOG ARM, STEEL, 10-7/16" LONG, FOR A 21" SCUTTLE
0191S 0191S DOG ARM, STAINLESS STEEL, 10-7/16" LONG, FOR A 21" SCUTTLE
0192 0192 DOG ARM, STEEL, 12-1/2" LONG, FOR A 25" SCUTTLE
0192S 0192S DOG ARM, STAINLESS STEEL, 12-1/2" LONG, FOR A 25" SCUTTLE
0140 0140 DOG CAM, STEEL
0140A 0140A DOG CAM, ALUMINUM
0322 0322 DOG REST, STEEL
0322A 0322A DOG REST, ALUMINUM
