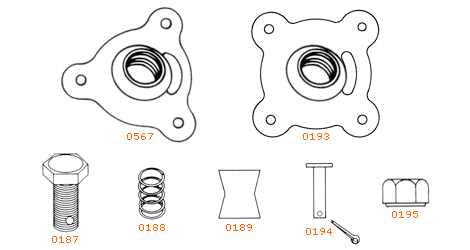

> OPERATING MECHANISM AND DOG PARTS FOR QUICK-ACTING RAISED SCUTTLES

ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

DC KIT K			NOTES: FOR AN 18" OR 21" SCUTTLE (3 DOGS)
	QTY	JDA PN
	1 EA	0567	3-DOG SPIDER, BRASS
	3 EA	0187	DOG ADJUSTING BOLT, STAINLESS STEEL
	3 EA	0118	DOG REST SPRING, BRASS
	6 EA	0189	DOG REST SLIDE PLATE, BRASS
	3 EA	0194	CLEVIS PIN AND COTTER PIN, STAINLESS STEEL
	2 EA	0195	SELF-LOCKING NUT, HEAVY THIN, STAINLESS STEEL, 5/8"-11

DC KIT KK			NOTES: FOR A 21" OR 25" SCUTTLE (4 DOGS)
	QTY	JDA PN
	1 EA	0193	4-DOG SPIDER, BRASS
	4 EA	0187	DOG ADJUSTING BOLT, STAINLESS STEEL
	4 EA	0118	DOG REST SPRING, BRASS
	8 EA	0189	DOG REST SLIDE PLATE, BRASS
	4 EA	0194	CLEVIS PIN AND COTTER PIN, STAINLESS STEEL
	2 EA	0195	SELF-LOCKING NUT, HEAVY THIN, STAINLESS STEEL, 5/8"-11
