> OPERATING MECHANISM AND HINGE PARTS FOR
QUICK-ACTING RAISED SCUTTLES

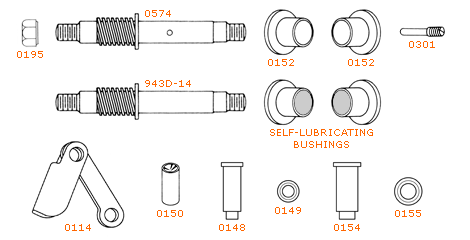

ANY PART APPEARING IN A KIT MAY ALSO BE ORDERED INDIVIDUALLY.

DC KIT M1			NOTES: FOR AN ALUMINUM OR STEEL SCUTTLE USING OILITE BUSHINGS (REQUIRES STICK PACKING)
	QTY	JDA PN
	1 EA	0574	SPINDLE, WITH STICK PACKING PASSAGES
	1 EA	0301	PACKING PLUNGER, 2" LONG
	2 EA	0152	FLANGED BUSHING, OILITE BRONZE
	1 EA	0114	BRACE LINK ASSEMBLY, STAINLESS STEEL
	1 EA	0150	LOWER BRACE LINK PIN, BRASS, 7/16" DIA. X 13/16" LONG
	1 EA	0148	UPPER BRACE LINK PIN, BRASS, 7/16" DIA.
	1 EA	0149	UPPER BRACE LINK PIN COLLAR, BRASS, 7/16" DIA.
	2 EA	0154	HINGE PIN, BRASS, 9/16" DIA.
	2 EA	0155	HINGE PIN COLLAR, BRASS
	2 EA	0195	SELF-LOCKING NUT, HEAVY THIN, STAINLESS STEEL, 5/8"-11

DC KIT M2			NOTES: FOR A STEEL SCUTTLE USING SELF-LUBRICATING BUSHINGS
	QTY	JDA PN
	1 EA	943D-14	SPINDLE, WITHOUT STICK PACKING PASSAGES
	1 EA	S890- 2627	SET OF 2 FLANGED BUSHINGS, SELF-LUBRICATING, STAINLESS STEEL
	1 EA	0114	BRACE LINK ASSEMBLY, STAINLESS STEEL
	1 EA	0150	LOWER BRACE LINK PIN, BRASS, 7/16" DIA. X 13/16" LONG
	1 EA	0148	UPPER BRACE LINK PIN, BRASS, 7/16" DIA.
	1 EA	0149	UPPER BRACE LINK PIN COLLAR, BRASS, 7/16" DIA.
	2 EA	0154	HINGE PIN, BRASS, 9/16" DIA.
	2 EA	0155	HINGE PIN COLLAR, BRASS
	2 EA	0195	SELF-LOCKING NUT, HEAVY THIN, STAINLESS STEEL, 5/8"-11

DC KIT M3			NOTES: FOR AN ALUMINUM SCUTTLE USING SELF-LUBRICATING BUSHINGS
	QTY	JDA PN
	1 EA	943D-14	SPINDLE, WITHOUT STICK PACKING PASSAGES
	1 EA	A890- 2627	SET OF 2 FLANGED BUSHINGS, SELF-LUBRICATING, ALUMINUM
	1 EA	0114	BRACE LINK ASSEMBLY, STAINLESS STEEL
	1 EA	0150	LOWER BRACE LINK PIN, BRASS, 7/16" DIA. X 13/16" LONG
	1 EA	0148	UPPER BRACE LINK PIN, BRASS, 7/16" DIA.
	1 EA	0149	UPPER BRACE LINK PIN COLLAR, BRASS, 7/16" DIA.
	2 EA	0154	HINGE PIN, BRASS, 9/16" DIA.
	2 EA	0155	HINGE PIN COLLAR, BRASS
	2 EA	0195	SELF-LOCKING NUT, HEAVY THIN, STAINLESS STEEL, 5/8"-11
